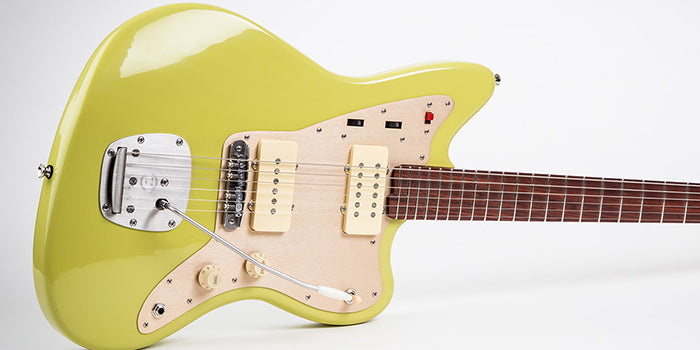

The Beardsell Swingmaster electric guitar is more of an update than a reimagining of the classic Jazzmaster look and sound. The body is a lightweight swamp ash, finished in a decidedly millenial avocado green with matching head face. The brushed stainless Mastery OMV trem and bridge and gold anodized pickguard provide smooth mechanical operation and solid look. Beardsell wanted to offer one more position of parallel humbucking by adding a third pickup; the neck pickup actually contains two single coils. The main 3-way switch is bridge/bridge - middle/middle - neck with 250K controls (instead of the standard 1meg Jazzmaster pots) for a fuller sound. The rhythm switch is neck pickup only with the traditional 1meg/50k volume tone that provides a classic jazz sound. The neck has Beardsell's no-hinge carbon fibre reinforcement and a two-way adjustable truss rod. The curly maple neck is finished in a warm amber, with 22 stainless frets on a rosewood fingerboard, a bone nut and 6 inline Gotoh Kluson-style tuners.


- Body: swamp ash
- Neck: curly maple
- Neck profile: teardrop C/V (flat thumb-side, rounded finger side)
- Fretboard: rosewood
- Scale length: 25.5"
- Fretboard radius: 16"
- Fret material: stainless steel SM 152
- Fret count: 22
- Head inlay: logo decal only over body colour
- Fret markers: side dots only at 3-5-7-9-12-15-17-19
- Nut material: bleached beef bone
- Truss rod: steel 2-way
- Neck rods: 2 static carbon-fibre
- Neck pickup: Jazzmaster style--A5, 42awg, 9.5K
- Middle pickup: Jazzmaster--A2, 42awg, 6k, in RWRP (parallel humbucking when on)
- Bridge pickup: Jazzmaster style--A5, 43awg, 10K
- Pickup type: passive single-coil
- Pickup cover/material: creme plastic
- Controls: volume, tone (with middle in-series push/pull), 3-way toggle
- Pots: 500k CTS
- Treble bleed: yes--0.001uf/150K
- Tone cap: 0.022uf orange drop
- Bridge: Mastery M-1
- Tailpiece: Mastery OMV
- Jack: 1/4" Switchcraft
- Jack mount: Electrosocket
- Tuners: Gotoh, Kluson style
- Control knobs: creme Strat
- Switch: Switchcraft 3-way toggle
- Body finish: gloss avocado green
- Neck finish: gloss clear
- Case: Ameritage silver
- Pickguard: gold anodized
- Pickup mounts: through-pickup screws mounted directly into body
- Nut width: 1 11/16"
- Spacing: 2 1/8"
- Fretboard width: narrow
- Fingerboard binding: none
- Body depth: 1 3/4"
- Body width: 13.25" (lower bout)
- Body length: 18"
- Body binding: none
- Overall length: 41"
- Neck join fret count: 16
- Finish type: water-bourne lacquer
